SMART TELEMETRY

  • Intelligent units that function in complete isolation

  • No need for a central unit or polling PC

  • Fast event driven relay output mapping functions

  • Instant access from any PC on a LAN or dialup from home

  • Fast event driven relay output mapping functions

  • Periodic hourly/daily logging to a PC or host.



DEDICATED TELEMETRY LINKS

The BT-62-SV are single VF port units, designed for dedicated applications where only the BT units are present on the link. This is normal telemetry

  NO LOSS OF AIR TIME

  • Alarm data is transmitted during voice pauses

  • Data packets are muted and inaudible to staff

  • User's PTT has priority and always gets access

  • Secondary access through dial-up modems

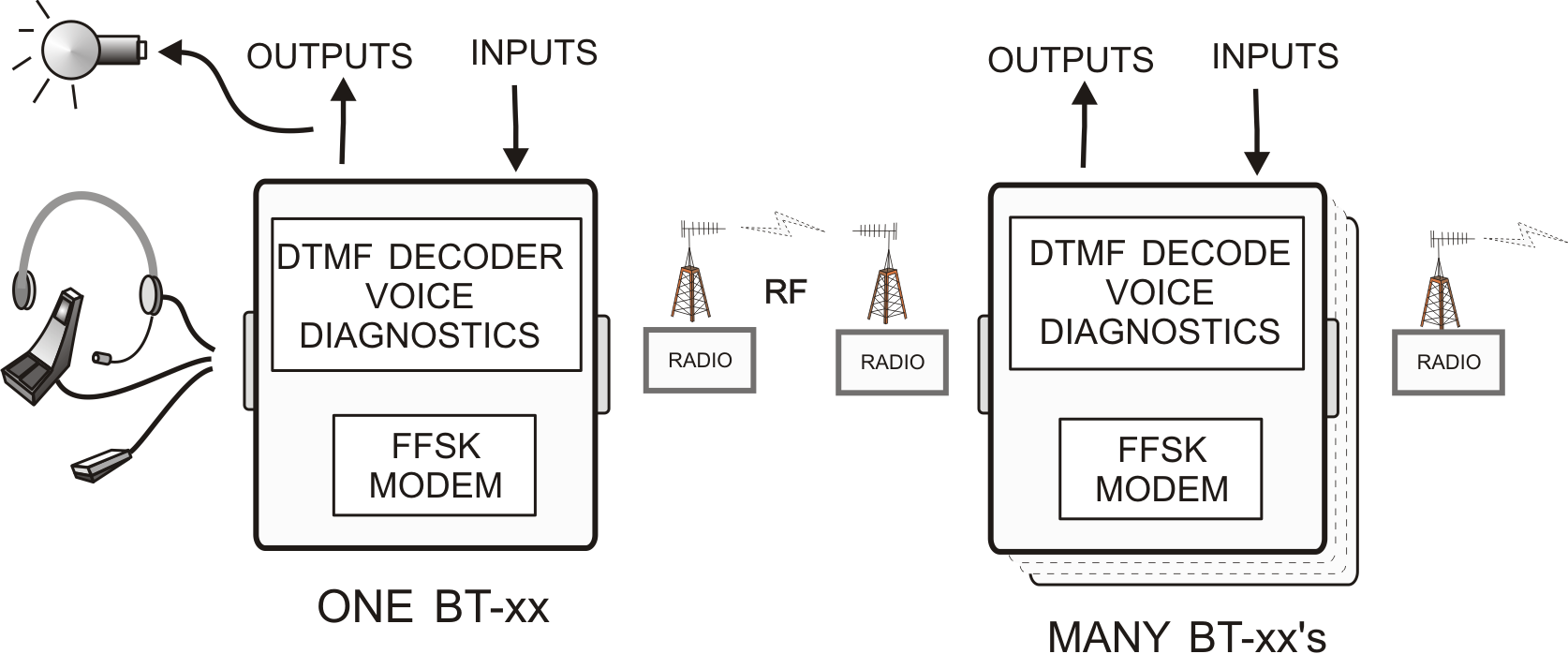

SHARED VOICE \ TELEMETRY LINKS

The BT-62-DV dual 6 wire VF port unit allows these units to be fitted in series with any 'in use' VF links. The telemetry transactions occur in the background on an event driven basis, and are muted from the users.





INTERNAL RF RADIO MODULES

The BT-62-RF is an all in one unit, fitted with its own simplex RF radio module. To install these units, just plug in your antennae. Frequencies range from 450-520Mhz, 800-960Hhz to 2.4Ghz spread spectrum.

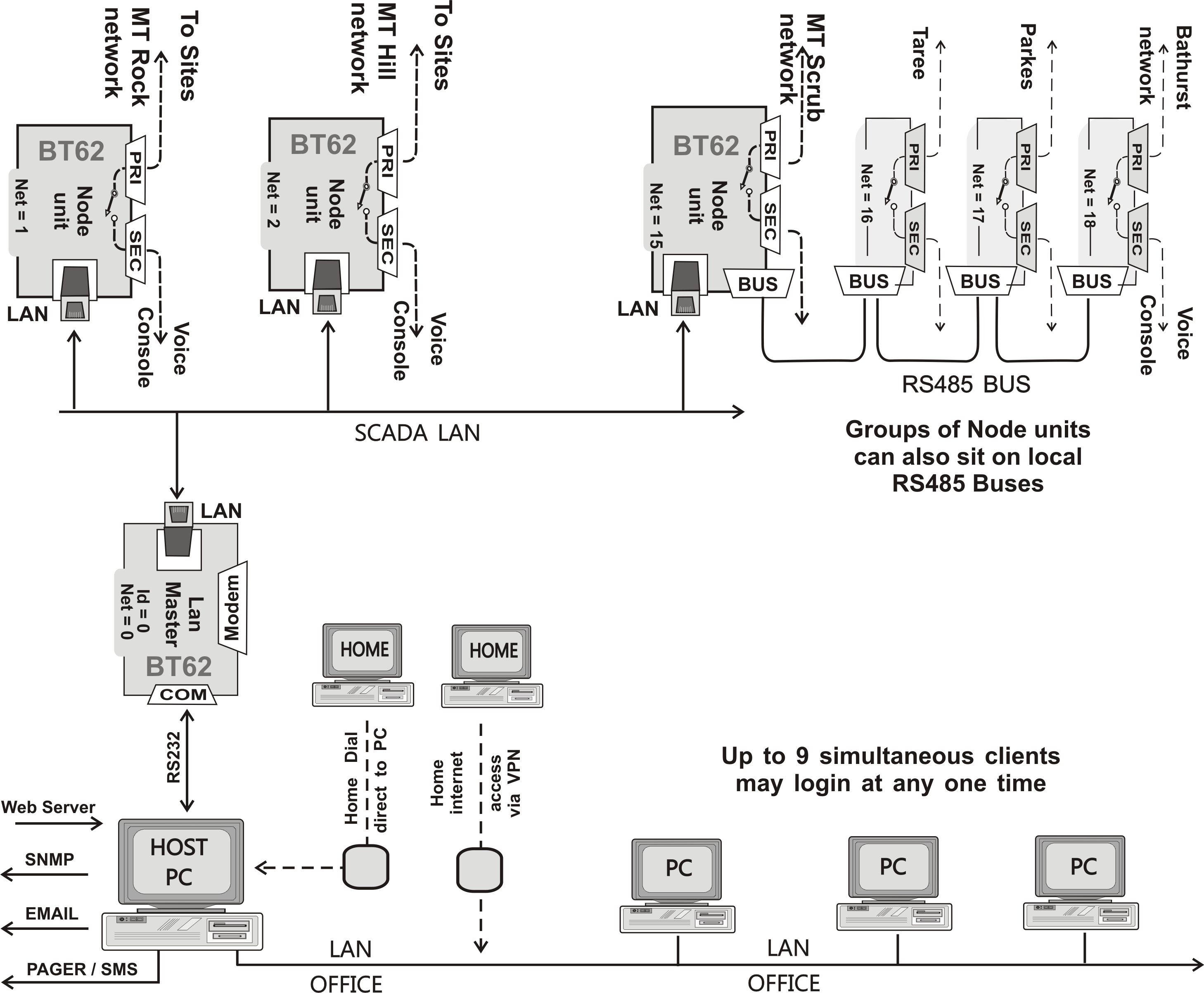

LAN IP CONNECTIONS

All versions of the BT-62 unit may be fitted with a LAN card to transmit alarms over the company WAN.



DIAL-UP MODEM CONNECTIONS

All versions of the BT-62 unit may be fitted with internal dial-up telephone line modems. This allows the telemetry process to be carried out over a telephone line in just the same manner as it does over radios. The line is only dialled when an alarm event occurs and is dropped as soon as the data packets have been passed and acknowledged.

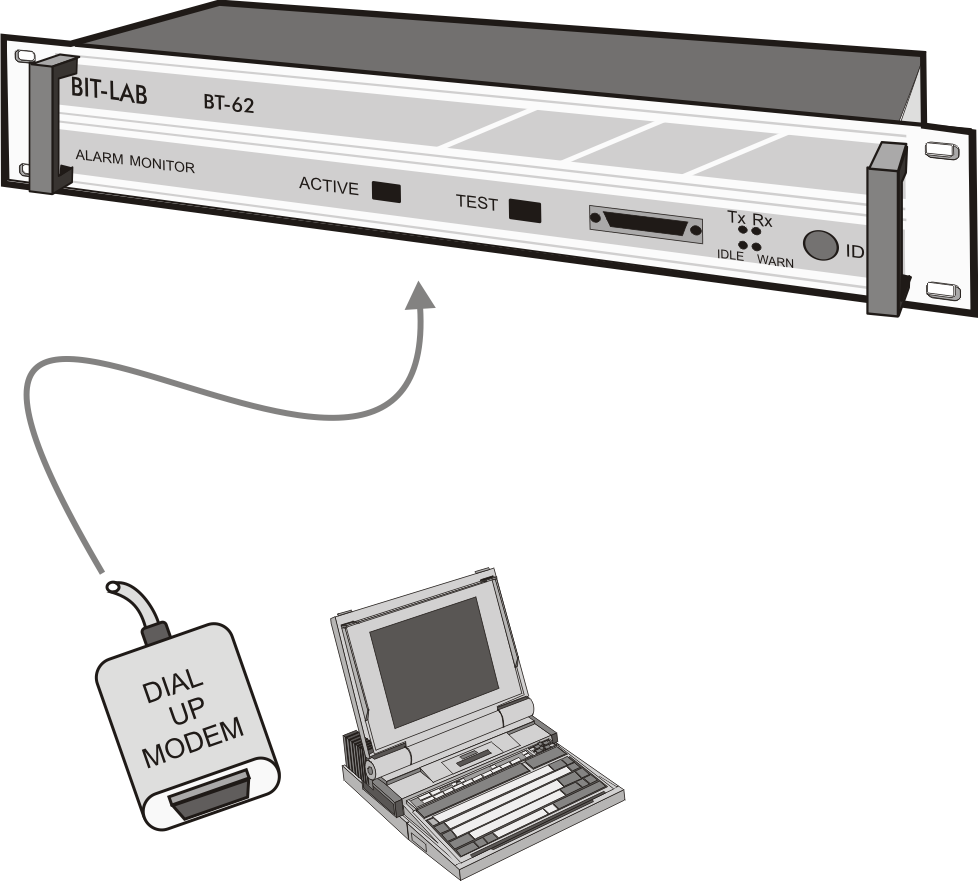

TECHS DIAL IN

Technicians can dial in from their home PC and extract logs from individual remote units or the central controllers, even when it's display PC is off.

The BT-62 unit can also be supplied as a low cost dial-in only unit. In this case the FFSK and audio circuits are not fitted and the unit communicates only via dial-up Telecom lines.


YOUR MAPS ON SCREEN

 Build and change your own on screen maps with hot spots to other maps and pop-up sites.



PC ALARMS

This easy to operate tool allows alarm POP-UP boxes to appear even when you are in other application, such as a spreadsheet or word processing.  YOUR TEXT DISPLAYED You type in the different text you want to be displayed for each ON or OFF alarm event.



SIMPLE TO CHANGE

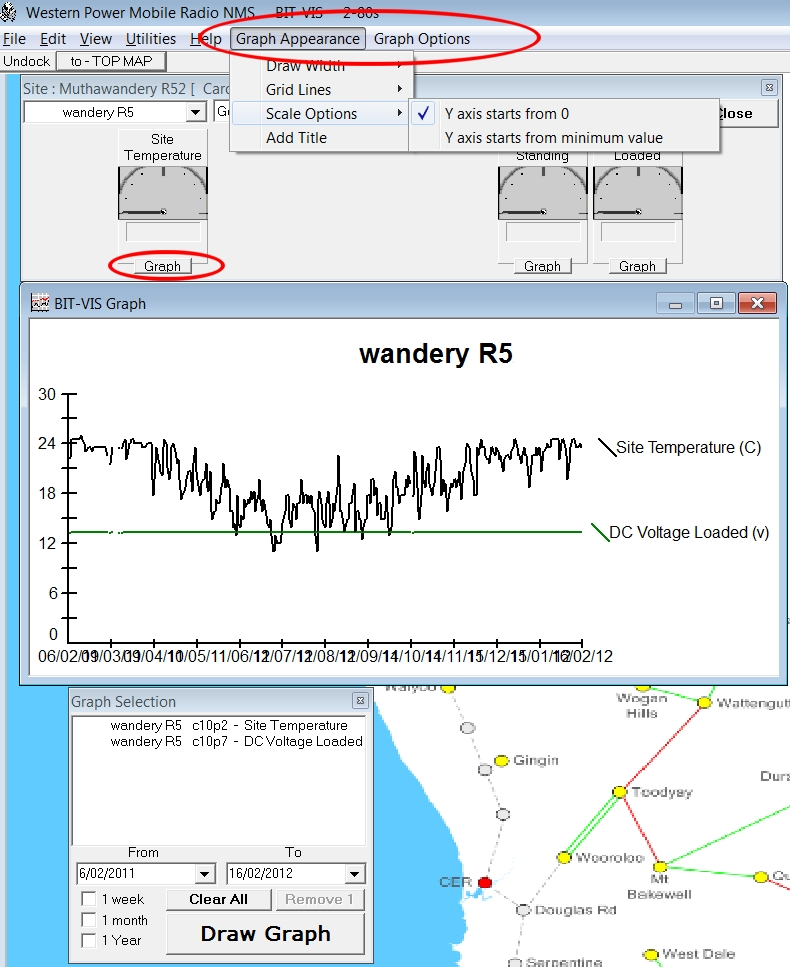

Change meter styles, ON/OFF boxes, names and units of measure. All A/Ds are scaleable and can be offset to suit your sensors. Display VSWR or litres/sec. What ever your input it can be scaled to be displayed as a meaningful result.
