Your objective :

Maintain and monitor your equipment with a faster response.

Your solution :

Bitlab - developers of customised telemetry and monitoring solutions.



Some of Australia's leading  companies trust in BitLab monitoring and control applications.

The BitLab range of units are powerful telemetry devices which may customised to tackle a wide range of customer specific applications.

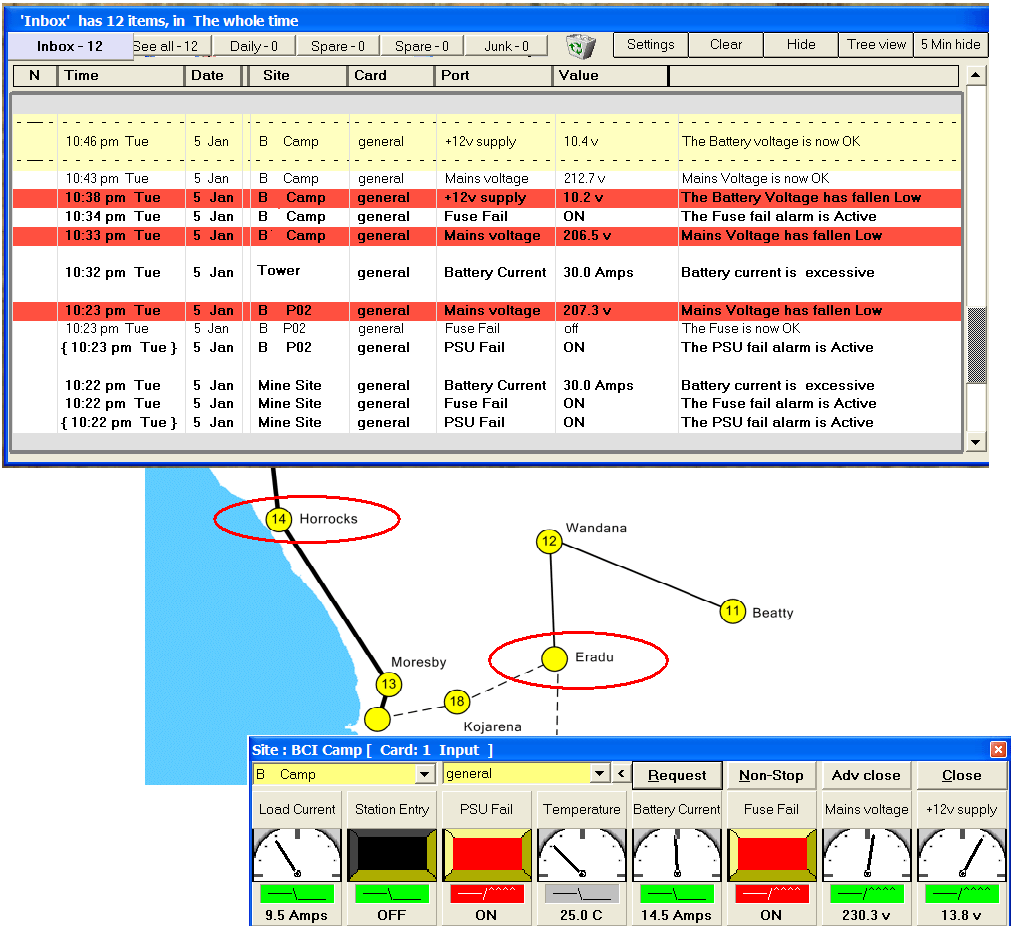

From your needs, we customised and configure a turn key system. This is supplied as a fully setup and ready to install set of units complete with documentation and test leads. If you are too busy to read through lengthy setup procedures and complicated software manuals, then this system is for you. In addition, we provide you with easy to use tools, that allow you to alter and fine tune your system. All parameters from trip points, telephone numbers to POP-UP alarm text alarms are configurable with BIT-VISION.

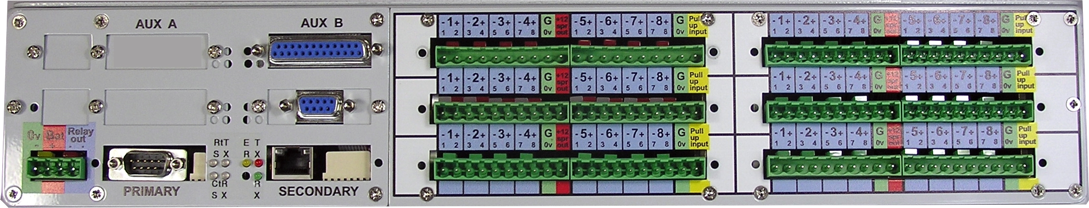

The BT-62 units are intelligent and work quite independently from any PC. They do not require constant polling, and all messages and voice phrase annunciations are generated from the BT-62 unit on its own. This is done with out the need for interaction from a central PC.





When your PC is connected to a second BT-62 it can receive FFSK modem data packets transmitted over the air or via the PSTN dial up modem or over the internet via IP LAN.





MAPPING RELAY ALARMS

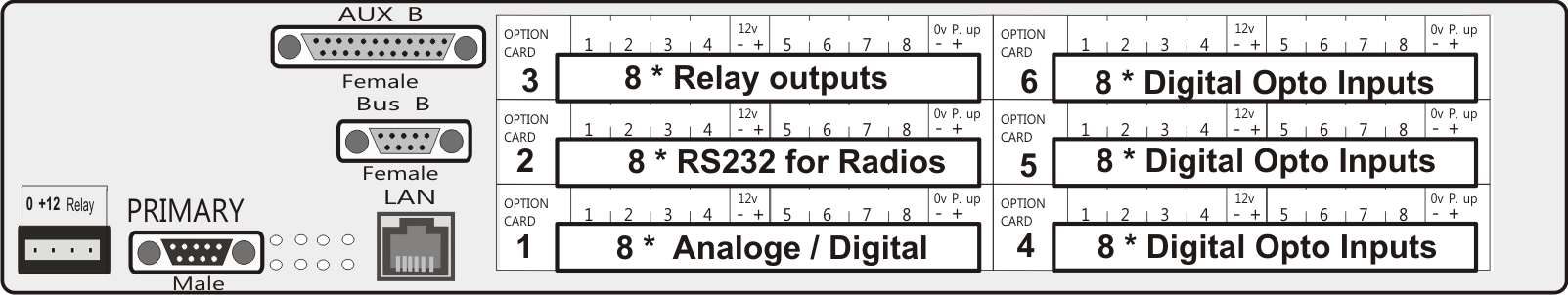

The internal FFSK radio modem can map any input to any output on any other BT-62s including it's self. Multiple alarm inputs from several BT-62's may be mapped to the same alarm outputs on one central BT-62.

SPOKEN VOICE DIAGNOSTICS

The voltage or status of any inputs are spoken in response to a DTMF access PIN and a DTMF command codes. A store and repeat function will record 8 seconds of your transmission and re-transmit it back to you as an overall test.





.



.
